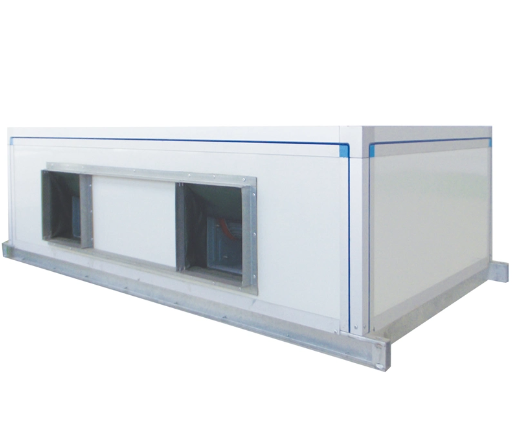

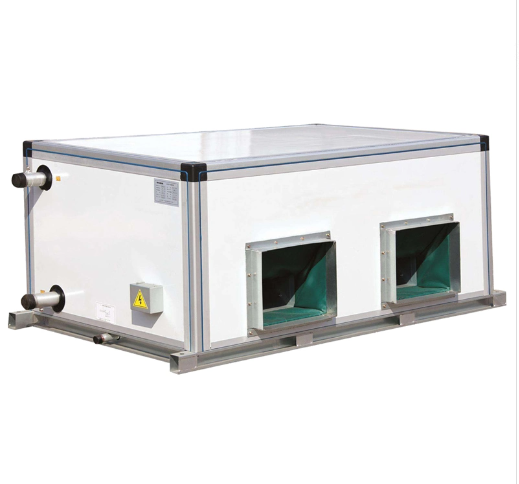

KD (X) Series Ceiling Type Air Conditioning Unit
The KD (X) Series is a ceiling-mounted air handling unit designed as the terminal equipment for central air conditioning systems. It performs various air treatment functions including filtration, cooling and dehumidification, heating, isenthalpic humidification, and outdoor air intake. It is suitable for delivering conditioned air to designated areas via ductwork over a certain distance, making it an ideal choice for HVAC projects in small commercial and industrial buildings.
This series comprises 13 models with a total of 39 specifications. The air volume capacity ranges from 1,500 m³/h to 15,000 m³/h, and the cooling capacity ranges from 8.4 kW to 324.8 kW. The unit casing is available in off-white or blue. Each unit comes equipped with a standard nylon filter. The heat exchanger features copper tubes threaded through high-efficiency aluminum fins, expanded mechanically to ensure significantly enhanced heat transfer efficiency.
Product Details
KD Series Ceiling-Mounted Air Handling Unit - Technical Specifications
| Model | Rated Airflow（m³/h） | External Static Pressure Pa | Fan | Weight （Kg） | Sound Pressure Level dB(A) | ||||||
| 4-Row | 6-Row | 8-Row | Type | Power（Kw） | Quantity | 4-Row | 6-Row | 8-Row | |||
| KD（X）-1.5 | 1500 | 260 | 200 | 146 | External Rotor Direct Drive | 0.32 | 1 | 145 | 155 | 165 | 58 |
| KD（X）-2 | 2000 | 258 | 198 | 145 | 0.37 | 1 | 159 | 171 | 183 | 59 | |
| KD（X）-2.5 | 2500 | 256 | 200 | 146 | 0.45 | 1 | 176 | 189 | 202 | 59 | |
| KD（X）-3 | 3000 | 246 | 192 | 136 | 0.55 | 1 | 208 | 223 | 238 | 60 | |
| KD（X）-4 | 4000 | 256 | 198 | 146 | 0.37×2 | 2 | 240 | 258 | 276 | 61 | |
| KD（X）-5 | 5000 | 246 | 200 | 150 | 0.45×2 | 2 | 264 | 285 | 306 | 62 | |
| KD（X）-6 | 6000 | 246 | 192 | 138 | 0.55×2 | 2 | 353 | 328 | 303 | 62 | |
| KD（X）-7 | 7000 | 267 | 230 | 178 | 0.75×2 | 2 | 324 | 373 | 402 | 63 | |
| KD（X）-8 | 8000 | 355 | 305 | 252 | 0.8×2 | 2 | 384 | 417 | 450 | 63 | |
| KD（X）-10 | 10000 | 406 | 355 | 308 | 1.5×2 | 2 | 410 | 453 | 496 | 66 | |
| KD（X）-12 | 12000 | 460 | 400 | 346 | 1.8×2 | 2 | 480 | 523 | 569 | 69 | |
| KD（X）-13.5 | 13500 | 468 | 408 | 350 | 2.2×2 | 2 | 548 | 594 | 640 | 72 | |
| KD（X）-15 | 15000 | 510 | 446 | 395 | 3.0×2 | 2 | 615 | 665 | 715 | 73 | |

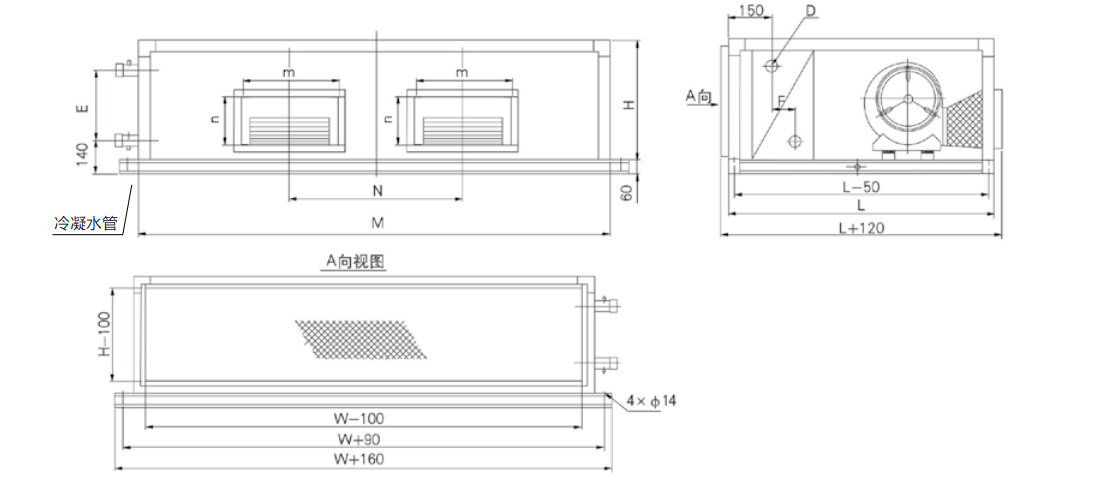

KD (X) Series Ceiling-mounted Air Handling Unit - Outline Dimension Diagram
| Model | KD(X)-7 | KD(X)-8 | KD(X)-10 | KD(X)-12 | KD(X)-13.5 | KD(X)-15 |
| L | 1105 | 1105 | 1305 | 1305 | 1305 | 1305 |
| W | 1960 | 1960 | 2080 | 2180 | 2280 | 2340 |
| H | 580 | 620 | 680 | 740 | 780 | 810 |
| m×n | 2-400×250 | 2-500×250 | 2-500×320 | 2-500×400 | 2-500×400 | 2-630×400 |
| N | 760 | 820 | 820 | 900 | 900 | 1000 |
| d(in) | 11月2日 | 2 | 2 | 2 | 2 | 2 |
| E | 380 | 418 | 494 | 570 | 608 | 684 |
| F | 4-row coil: F=99, 6-row coil: F=165, 8-row coil: F=231 | |||||
Show only some parameters
KD Series Ceiling-Mounted Air Conditioning Unit Heat Exchanger Cooling Capacity (Under Return Air Condition)
| Model | Rated Airflow | Inlet Condition：A：t=27℃ DBt=21℃ WB | ||||||||
| Cooling Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 11.2 | 15.16 | 19.5 | 1.92 | 2.62 | 3.38 | 7.2 | 11.9 | 13 |
| KD-5 | 5000 | 27.6 | 37.7 | 49.1 | 4.76 | 6.5 | 8.4 | 9.8 | 13.6 | 20.1 |
| KD-7 | 7000 | 47.6 | 58.3 | 71.4 | 8.2 | 10 | 12.1 | 10.6 | 16.7 | 24.2 |
| KD-8 | 8000 | 49.6 | 66.4 | 82.6 | 8.6 | 10.6 | 13.2 | 10.5 | 16.7 | 23.8 |
| KD-10 | 10000 | 57.6 | 78.7 | 93.9 | 9.9 | 13.5 | 16.1 | 10.5 | 16.7 | 23.9 |
| KD-15 | 15000 | 87 | 110 | 140.5 | 15 | 18.9 | 24.2 | 10.5 | 16.6 | 23.8 |
Show only some parameters
KD Series Ceiling-mounted Air Conditioning Unit - Heating Coil Capacity (Under Return Air Condition)
| Model | Rated Airflow | Inlet Condition：t=15℃ DB | ||||||||
| Heating Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 18.3 | 25.3 | 32.5 | 2.8 | 3.8 | 4.9 | 7.2 | 11.8 | 13 |
| KD-5 | 5000 | 45.6 | 62.4 | 79.1 | 6.9 | 9.4 | 11.9 | 9.9 | 13.9 | 20.2 |
| KD-7 | 7000 | 66.5 | 97.8 | 109.1 | 10 | 13.8 | 16.4 | 10.5 | 16.7 | 23.8 |
| KD-8 | 8000 | 80.8 | 99.1 | 122.5 | 12.2 | 15 | 18.5 | 10.5 | 16.7 | 23.8 |
| KD-10 | 10000 | 96 | 110.6 | 139.6 | 14.5 | 16.7 | 21.2 | 10.5 | 16.7 | 23.8 |
| KD-15 | 15000 | 145.8 | 181.7 | 211.9 | 22 | 27.4 | 32 | 10.5 | 16.7 | 23.8 |
Show only some parameters
KD Series Ceiling-mounted Air Conditioning Unit - Cooling Performance Data (Fresh Air Condition)
| Model | Rated Airflow | Inlet Condition：A：t=35℃ DBt=28℃ WB | ||||||||
| Cooling Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 21.4 | 29.5 | 38 | 3.2 | 4.5 | 5.7 | 12.6 | 15.9 | 12.5 |
| KD-5 | 5000 | 53.2 | 73 | 92.5 | 8 | 11 | 13.9 | 22.8 | 32 | 46.5 |
| KD-8 | 8000 | 94.6 | 116 | 143.3 | 14.3 | 17.5 | 21.6 | 17.3 | 27.6 | 39.3 |
| KD-10 | 10000 | 112.3 | 129.3 | 163.3 | 16.9 | 19.5 | 24.6 | 17.3 | 27.6 | 39.3 |
| KD-12 | 12000 | 137.4 | 170.6 | 199.5 | 20.7 | 25.8 | 30.2 | 22.8 | 32 | 46.5 |
| KD-15 | 15000 | 170.8 | 212.6 | 248 | 25.8 | 32.2 | 37.5 | 17.3 | 27.6 | 39.3 |
Show only some parameters
KD Series Ceiling-mounted Air Conditioning Unit - Heating Capacity (Fresh Air Condition)
| Model | Rated Airflow | Inlet Condition：t=7℃ DB | ||||||||
| Heating Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 27.2 | 33.2 | 38.2 | 4.7 | 5.7 | 6.6 | 12.6 | 15.9 | 12.5 |
| KD-5 | 5000 | 65.7 | 81.4 | 104 | 11.4 | 14.1 | 18.2 | 22.8 | 32 | 46.3 |
| KD-8 | 8000 | 115.6 | 139.8 | 176.8 | 20.1 | 24.1 | 30.5 | 17.3 | 27.6 | 39.3 |
| KD-10 | 10000 | 126.2 | 179.5 | 219 | 21.6 | 30.7 | 37.7 | 17.3 | 27.6 | 39.3 |
| KD-12 | 12000 | 169 | 210.1 | 257.5 | 29.1 | 36.2 | 44.3 | 22.8 | 32 | 46.5 |
| KD-15 | 15000 | 211.4 | 257.4 | 324.8 | 36.4 | 44.3 | 55.9 | 17.3 | 27.6 | 39.3 |
Show only some parameters
Product Introduction
The KD(X) series ceiling air handling unit is a ceiling-mounted air terminal unit for central air conditioning systems. It combines multiple air treatment functions, including filtration, cooling, dehumidification, heating, and fresh air intake. Designed to deliver conditioned air over extended distances through ductwork, it is especially suitable for HVAC systems in small commercial and industrial buildings.
This series includes 13 models and 39 specifications, with airflow capacities ranging from 1,500 to 15,000 m³/h and cooling capacities from 8.4 kW to 324.8 kW. Units feature a clean off-white or blue finish and come equipped with built-in reusable nylon filters. The heat exchanger uses copper tubes and high-efficiency aluminum fins, mechanically expanded to ensure superior heat transfer performance.
Product Details

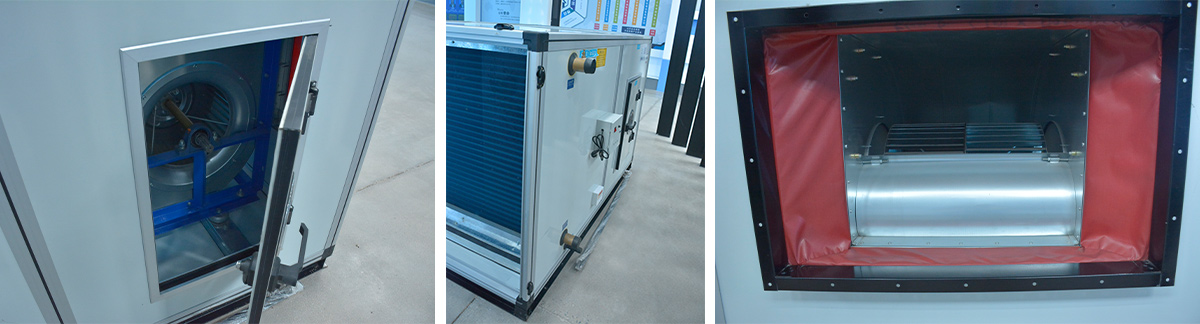

Product Features
Equipped with a rigid steel base for easy transportation; large units can be assembled on site.
Constructed with aluminum alloy (or aluminum-plastic) frame profiles and 0.1–1mm double-skin panels coated with anti-corrosion paint. The panel core is filled with mineral wool or PU foam, offering excellent thermal insulation and ensuring no cold bridges or condensation issues.
All components are rigorously tested to ensure stable performance under all climate conditions.
Optional integration with an automatic control system allows for intelligent operation and energy savings.
Bottom drainage design with a 1.5% slope ensures smooth condensate discharge.
Customizable configurations available based on user requirements.
Packaging & Shipping

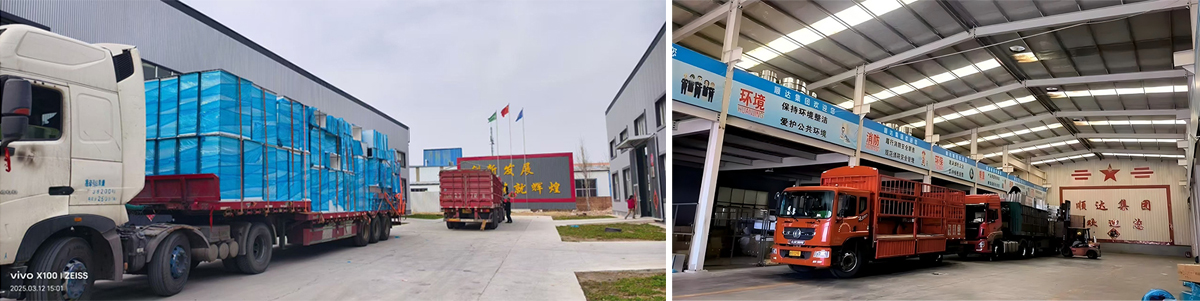

Each Ceiling Air Handling Unit is carefully packaged to ensure safe transportation and hassle-free installation. Compact models are typically delivered as fully assembled units, while larger sizes may be shipped in sections for easier handling and ceiling mounting. All components are securely wrapped with moisture-resistant film and protected using wooden pallets or crates to prevent damage during transit. Shipments are arranged by road, sea, or air based on the destination and customer requirements. Every unit is accompanied by a detailed packing list, installation manual, and handling instructions to support quick and accurate on-site installation.
