Industrial Ceiling Air Conditioner
✔Ceiling-mounted design: Compact structure for space-saving concealed installation.
✔Integrated air treatment: Filters, cools, dehumidifies, heats, and introduces fresh air.
✔Wide capacity range: 13 models with 39 specs, airflow from 1,500 to 15,000 m³/h.
✔Efficient heat exchanger: Copper tubes with aluminum fins ensure high heat transfer efficiency.
✔Built-in nylon filter: Reusable filter ensures clean air and easy maintenance.
✔Long-distance air delivery: Suitable for ducted systems in various commercial spaces.
Product Details
KD Series Ceiling-Mounted Air Handling Unit - Technical Specifications
| Model | Rated Airflow（m³/h） | External Static Pressure Pa | Fan | Weight （Kg） | Sound Pressure Level dB(A) | ||||||
| 4-Row | 6-Row | 8-Row | Type | Power（Kw） | Quantity | 4-Row | 6-Row | 8-Row | |||
| KD（X）-1.5 | 1500 | 260 | 200 | 146 | External Rotor Direct Drive | 0.32 | 1 | 145 | 155 | 165 | 58 |
| KD（X）-2 | 2000 | 258 | 198 | 145 | 0.37 | 1 | 159 | 171 | 183 | 59 | |
| KD（X）-2.5 | 2500 | 256 | 200 | 146 | 0.45 | 1 | 176 | 189 | 202 | 59 | |
| KD（X）-3 | 3000 | 246 | 192 | 136 | 0.55 | 1 | 208 | 223 | 238 | 60 | |
| KD（X）-4 | 4000 | 256 | 198 | 146 | 0.37×2 | 2 | 240 | 258 | 276 | 61 | |
| KD（X）-5 | 5000 | 246 | 200 | 150 | 0.45×2 | 2 | 264 | 285 | 306 | 62 | |
| KD（X）-6 | 6000 | 246 | 192 | 138 | 0.55×2 | 2 | 353 | 328 | 303 | 62 | |
| KD（X）-7 | 7000 | 267 | 230 | 178 | 0.75×2 | 2 | 324 | 373 | 402 | 63 | |
| KD（X）-8 | 8000 | 355 | 305 | 252 | 0.8×2 | 2 | 384 | 417 | 450 | 63 | |
| KD（X）-10 | 10000 | 406 | 355 | 308 | 1.5×2 | 2 | 410 | 453 | 496 | 66 | |
| KD（X）-12 | 12000 | 460 | 400 | 346 | 1.8×2 | 2 | 480 | 523 | 569 | 69 | |
| KD（X）-13.5 | 13500 | 468 | 408 | 350 | 2.2×2 | 2 | 548 | 594 | 640 | 72 | |
| KD（X）-15 | 15000 | 510 | 446 | 395 | 3.0×2 | 2 | 615 | 665 | 715 | 73 | |
KD (X) Series Ceiling-mounted Air Handling Unit - Outline Dimension Diagram
| Model | KD(X)-7 | KD(X)-8 | KD(X)-10 | KD(X)-12 | KD(X)-13.5 | KD(X)-15 |
| L | 1105 | 1105 | 1305 | 1305 | 1305 | 1305 |
| W | 1960 | 1960 | 2080 | 2180 | 2280 | 2340 |
| H | 580 | 620 | 680 | 740 | 780 | 810 |
| m×n | 2-400×250 | 2-500×250 | 2-500×320 | 2-500×400 | 2-500×400 | 2-630×400 |
| N | 760 | 820 | 820 | 900 | 900 | 1000 |
| d(in) | 11月2日 | 2 | 2 | 2 | 2 | 2 |
| E | 380 | 418 | 494 | 570 | 608 | 684 |
| F | 4-row coil: F=99, 6-row coil: F=165, 8-row coil: F=231 | |||||
Show only some parameters
KD Series Ceiling-Mounted Air Conditioning Unit Heat Exchanger Cooling Capacity (Under Return Air Condition)
| Model | Rated Airflow | Inlet Condition：A：t=27℃ DBt=21℃ WB | ||||||||
| Cooling Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 11.2 | 15.16 | 19.5 | 1.92 | 2.62 | 3.38 | 7.2 | 11.9 | 13 |
| KD-5 | 5000 | 27.6 | 37.7 | 49.1 | 4.76 | 6.5 | 8.4 | 9.8 | 13.6 | 20.1 |
| KD-7 | 7000 | 47.6 | 58.3 | 71.4 | 8.2 | 10 | 12.1 | 10.6 | 16.7 | 24.2 |
| KD-8 | 8000 | 49.6 | 66.4 | 82.6 | 8.6 | 10.6 | 13.2 | 10.5 | 16.7 | 23.8 |
| KD-10 | 10000 | 57.6 | 78.7 | 93.9 | 9.9 | 13.5 | 16.1 | 10.5 | 16.7 | 23.9 |
| KD-15 | 15000 | 87 | 110 | 140.5 | 15 | 18.9 | 24.2 | 10.5 | 16.6 | 23.8 |
Show only some parameters
KD Series Ceiling-mounted Air Conditioning Unit - Heating Coil Capacity (Under Return Air Condition)
| Model | Rated Airflow | Inlet Condition：t=15℃ DB | ||||||||
| Heating Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 18.3 | 25.3 | 32.5 | 2.8 | 3.8 | 4.9 | 7.2 | 11.8 | 13 |
| KD-5 | 5000 | 45.6 | 62.4 | 79.1 | 6.9 | 9.4 | 11.9 | 9.9 | 13.9 | 20.2 |
| KD-7 | 7000 | 66.5 | 97.8 | 109.1 | 10 | 13.8 | 16.4 | 10.5 | 16.7 | 23.8 |
| KD-8 | 8000 | 80.8 | 99.1 | 122.5 | 12.2 | 15 | 18.5 | 10.5 | 16.7 | 23.8 |
| KD-10 | 10000 | 96 | 110.6 | 139.6 | 14.5 | 16.7 | 21.2 | 10.5 | 16.7 | 23.8 |
| KD-15 | 15000 | 145.8 | 181.7 | 211.9 | 22 | 27.4 | 32 | 10.5 | 16.7 | 23.8 |
Show only some parameters
KD Series Ceiling-mounted Air Conditioning Unit - Cooling Performance Data (Fresh Air Condition)
| Model | Rated Airflow | Inlet Condition：A：t=35℃ DBt=28℃ WB | ||||||||
| Cooling Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 21.4 | 29.5 | 38 | 3.2 | 4.5 | 5.7 | 12.6 | 15.9 | 12.5 |
| KD-5 | 5000 | 53.2 | 73 | 92.5 | 8 | 11 | 13.9 | 22.8 | 32 | 46.5 |
| KD-8 | 8000 | 94.6 | 116 | 143.3 | 14.3 | 17.5 | 21.6 | 17.3 | 27.6 | 39.3 |
| KD-10 | 10000 | 112.3 | 129.3 | 163.3 | 16.9 | 19.5 | 24.6 | 17.3 | 27.6 | 39.3 |
| KD-12 | 12000 | 137.4 | 170.6 | 199.5 | 20.7 | 25.8 | 30.2 | 22.8 | 32 | 46.5 |
| KD-15 | 15000 | 170.8 | 212.6 | 248 | 25.8 | 32.2 | 37.5 | 17.3 | 27.6 | 39.3 |
Show only some parameters
KD Series Ceiling-mounted Air Conditioning Unit - Heating Capacity (Fresh Air Condition)
| Model | Rated Airflow | Inlet Condition：t=7℃ DB | ||||||||
| Heating Capacity (kW) | Water Flow （t/n） | Water Pressure Drop (Kpa) | ||||||||
| m³/h | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | 4-row | 6-row | 8-row | |
| KD-2 | 2000 | 27.2 | 33.2 | 38.2 | 4.7 | 5.7 | 6.6 | 12.6 | 15.9 | 12.5 |
| KD-5 | 5000 | 65.7 | 81.4 | 104 | 11.4 | 14.1 | 18.2 | 22.8 | 32 | 46.3 |
| KD-8 | 8000 | 115.6 | 139.8 | 176.8 | 20.1 | 24.1 | 30.5 | 17.3 | 27.6 | 39.3 |
| KD-10 | 10000 | 126.2 | 179.5 | 219 | 21.6 | 30.7 | 37.7 | 17.3 | 27.6 | 39.3 |
| KD-12 | 12000 | 169 | 210.1 | 257.5 | 29.1 | 36.2 | 44.3 | 22.8 | 32 | 46.5 |
| KD-15 | 15000 | 211.4 | 257.4 | 324.8 | 36.4 | 44.3 | 55.9 | 17.3 | 27.6 | 39.3 |
Show only some parameters
Product Introduction

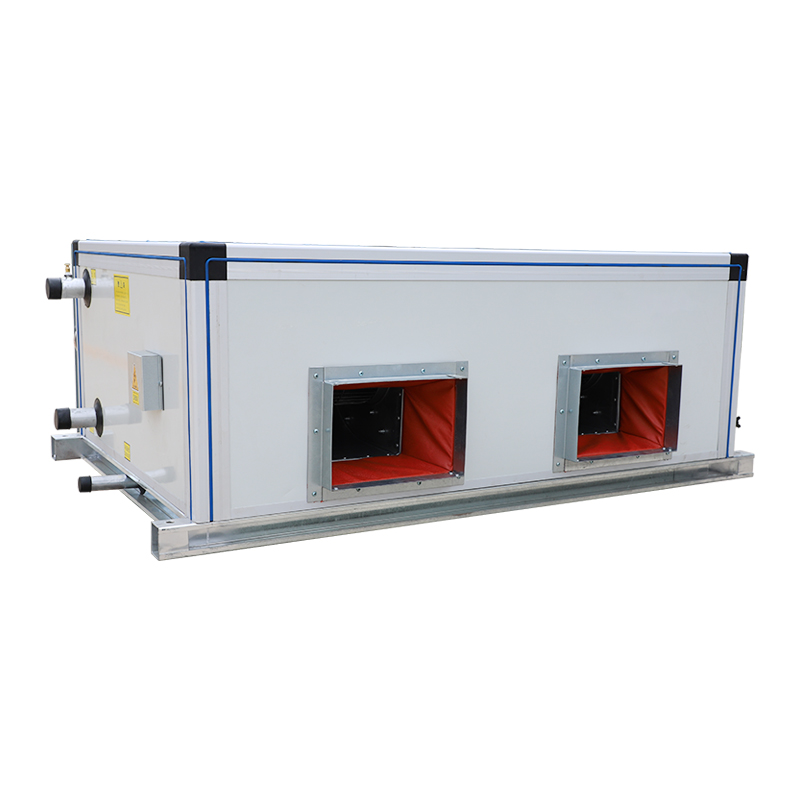

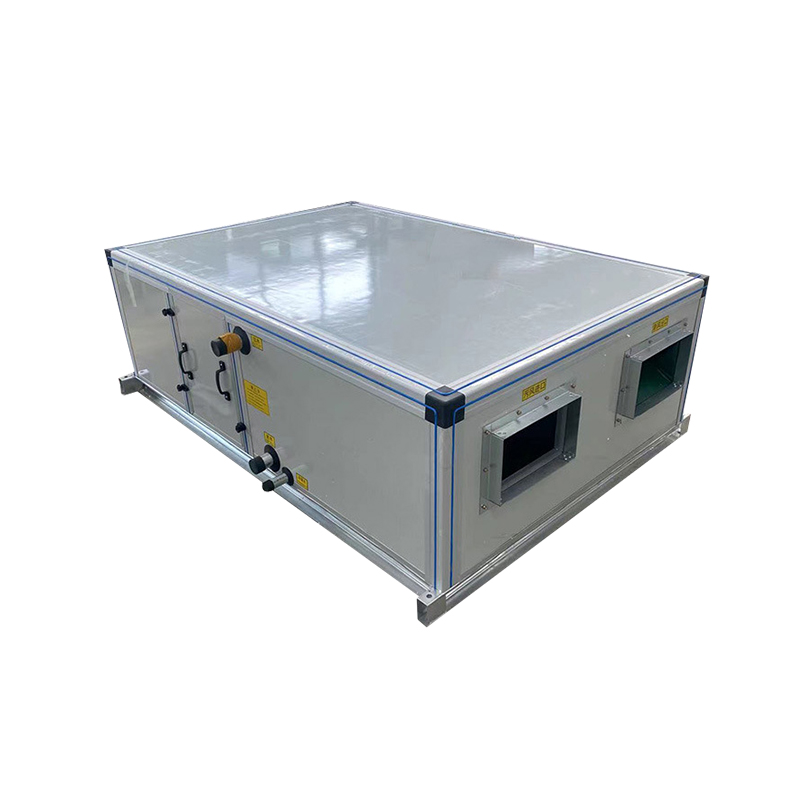

The Industrial Ceiling Air Conditioner is a ceiling-mounted air terminal unit for central air conditioning systems. It combines multiple air treatment functions including filtering, cooling, dehumidification, heating and fresh air intake. Designed to deliver conditioned air over extended distances through ductworks, it is usually applied to HVAC systems in commercial and industrial buildings.
This series of conditioners include13 models and 39 specifications, with airflow capacities ranging from 1,500 to 15,000 m³/h and cooling capacities from 8.4kw to 324.8 kw. This kind of conditioners feature a clean off-white or blue apperance and come equipped with built-in reusable nylon filters. The heat exchanger uses copper tubes and high-efficiency aluminum fins, mechanically expanded to guarantee superior heat transfer capacity.
Product Details
Product Features

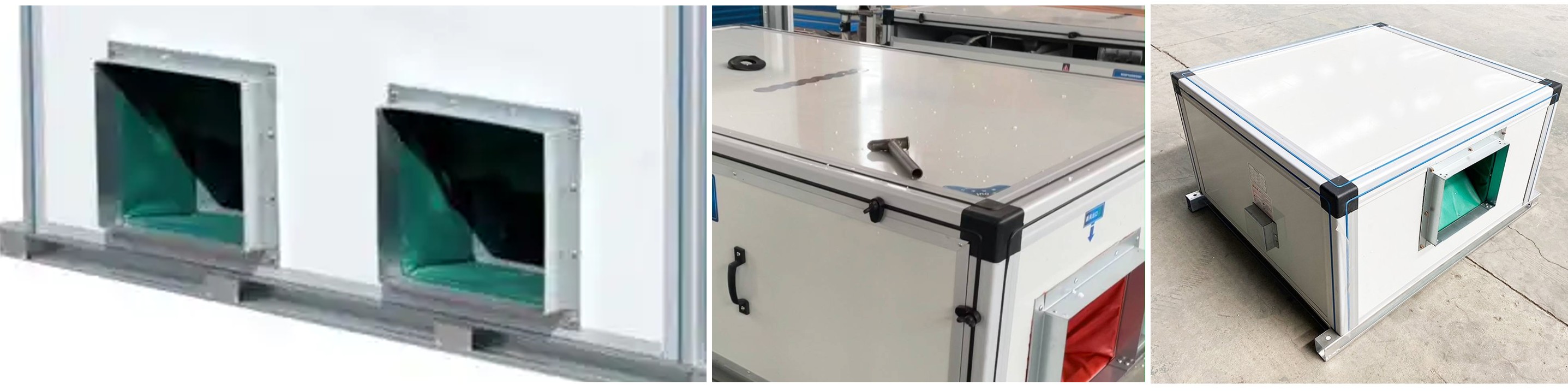

Equipped with a rigid steel base for quick transportation and large units can be assembled on site.
Constructed with aluminum alloy (or aluminum-plastic) frame profiles and 0.1–1mm double-skin panels coated with anti-corrosion paint. The panel core is filled with mineral wool or PU foam, offering excellent thermal insulation and ensuring no cold bridges or condensation issues.
All parts are rigorously tested to ensure stable performance under all climate conditions.
Optional integration with an automatic control system allows for intelligent operation and energy saving.
Bottom drainage design with a 1.5% slope ensures sucessful condensate discharge.
Customiz configurations available based on user requirements.
Packaging & Shipping

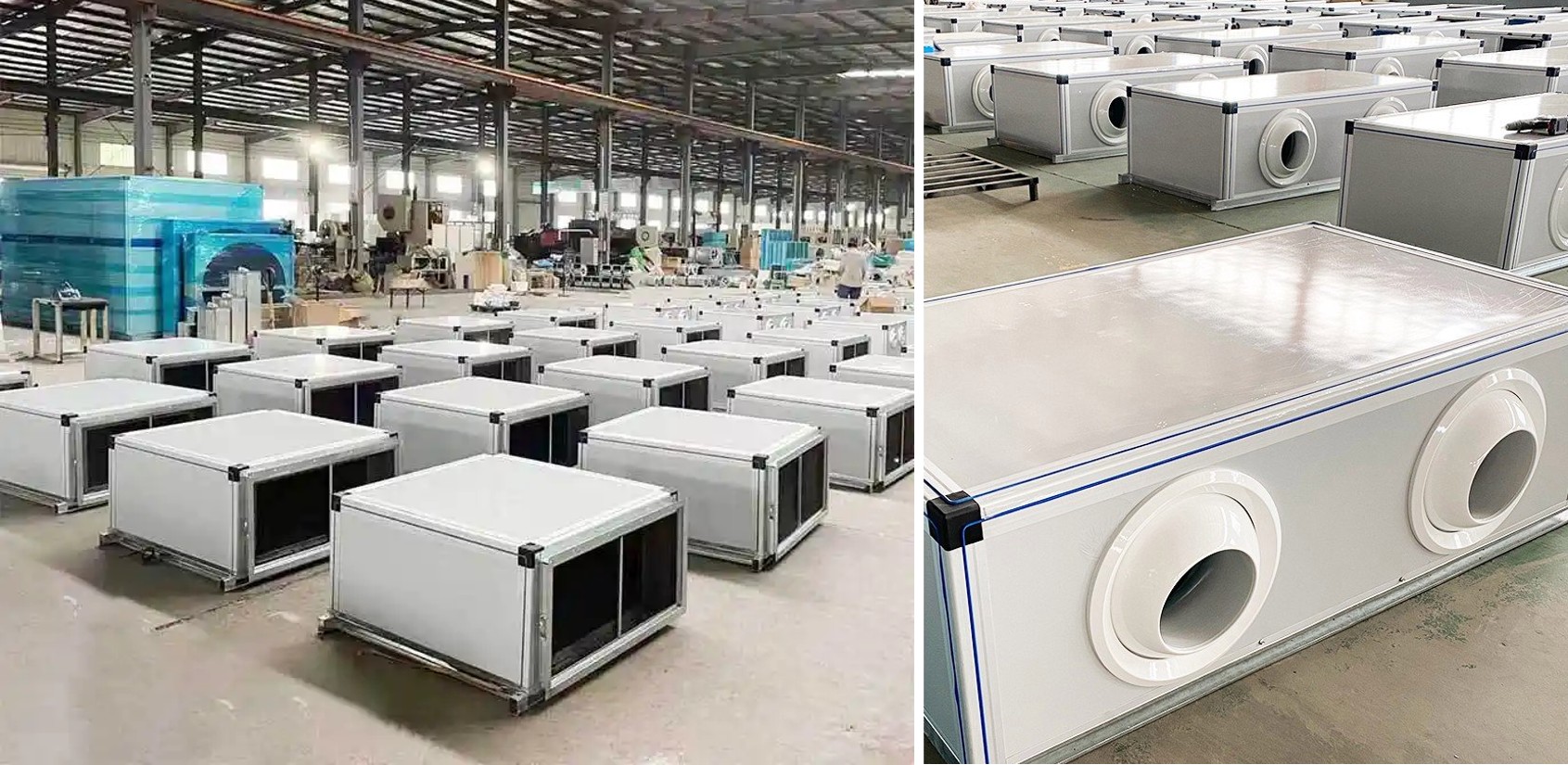

Each ceiling air conditioner is carefully packaged to ensure safe transportation and hassle-free installation. Compact models are delivered typically as fully assembled units, while larger sizes may be shipped in sections for easier handling. All components are securely packed with moisture-proof films and protected by using wooden pallets or crates to prevent damage during shipping. Every conditioner is accompanied with a packing list, installation manual and handling instructions to support quick and correct on-site installation.
Company Profile
Founded in 2005, Shunda Air Conditioning Equipment Group Co., Ltd. (Shunda for short) is based in Luquantun Industrial Park, Shandong Province of China—right at the heart of China’s HVAC systems industry. With over 70,000 square meters of space and a team of 230 people, we focus on manufacturing HVAC and smoke exhaust products.
Our product line covers more than 70 types of HVAC products and parts, including modular air conditioners, fan coil units, ventilators, industrial ventilation fans, fire dampers, air ducts, and more. We’re proud to hold ISO9001, ISO14001, ISO18001 certifications and several national awards that recognize our quality and innovation.
Under our renowned brand “Jinxin Shunda,” we’ve taken part in major projects across China and expanded our markets into Southeast Asia, Africa and some other countries and regions all over the world. Shunda is excited to keep growing with partners of the world.
Our Service
Requirement communication and technical consultation
Our experienced engineers and technicians are always ready to assist with product-related questions, providing professional support throughout the process.
We provide the relevant materials such as product catalogs, technical manuals, performance data sheets, installation diagrams and user guides to help our customers understand our solutions.
Tailored product configurations and implementation schedules are provided according to each customer's requirements and project conditions to ensure an optimal balance between performance and cost.
Product display and demonstration
Customers are invited to visit our manufacturing base for an well understanding of product.
We offer online product demonstrations by using VR, 3D animations and some other online systems to our customers.
Verified testing data from both lab testing and real projects are provided to our customers.
Installation and commissioning guidance and technical support
Customers can receive installation instructions, technical drawings, foundation construction requirement to support accurate on-site installation.
We can offer remote installation instruction or dispatch professional engineers for on-site technical support if required.
Quality assurance and maintenance
We provide all round support services to maintain a well product performance.
Our all time after-sales hotline is always available to respond to any requirement from our customers.
Periodic follow-up visits and maintenance services
During the warranty period, we conduct on-site visits every three months. After the warranty expires, we follow up annually via online visit to gather feedback and enhance our services.
Maintenance schedules are customized based on the customer’s operation time and environment to ensure optimal service life and efficiency.
Technical training
Customers are regularly invited to take part in online training programs about our products.
A technical support email box and online service systems are available to address product-related issues and responses to all the issues will be given within 24 hours.
